Pi-Pad Impedance Calculator

This Pi-pad impedance calculator is perfect if you want to build an impedance matching circuit for maximum power transfer.

Pi-Pad Impedance Calculator

• L-pad Calculator
• Pi-pad Calculator
• T-pad Calculator

---

This Pi-pad Impedance Calculator is an interactive online tool designed to calculate the component values required to match two unequal impedances. Impedance matching networks are used to match a source circuit having a high impedance output to a low impedance load, or vice versa.

Impedance matching networks help maximise the power transfer between a source and connected load since the relation between impedance matching and power transfer for an electrical circuit is an important and fundamental design principle of electrical circuits. Whether using matching transformers or passive RLC networks.

This Pi-pad Matching Network is another simple impedance matching circuit which gets its name from the fact that its circuit configuration is shaped like the Greek letter Pi, (Π). Pi-pad networks are passive attenuator networks which can also be used when the source/load impedances are equal.

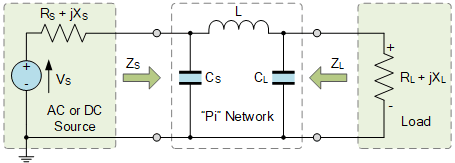

Pi-pad Impedance Matching Configuration

Then we can see that a Pi-pad impedance network has one series arm, a parallel or shunt input arm, and parallel or shunt output arm forming the Π circuit configuration. Note that the two parallel arm impedances can be of equal or unequal in value.

Note that the Pi-pad impedance network is symmetrical when the source and load impedances are of equal value but can become asymmetrical when the source and load impedances are unequal.

L-pad Impedance Calculator

Impedance Matching Calculator

Using this Calculator

There are some important items to understand when using this interactive Pi-pad impedance matching tool. The circuit topology given may change depending on the inputs. For example, in some topologies there may be two inductors and one capacitor forming an L-C-L type Pi-network. While in a different configuration it may be two capacitors and one inductor forming a C-L-C type Pi-network.

There is one menu item to select if there is to be any DC current passing or not, that also affects the topology. The inputs ask for source resistance and source reactance. If you are unsure what the reactance is set it to zero for a first pass approximation.

The outputs of this Pi-pad impedance calculator tool will give you the correct component values as well as a graph of the impedance looking into the Pi-pad network directly from the source.

This allows you to double check the calculator and make sure that it selected appropriate values, by making sure the impedance correctly matches the input impedance. Also remember that the circuit input reactance will be opposite in polarity with the source reactance when matching.

Pi-pad Impedance Calculator Summary

In this online calculator tutorial we have looked at impedance matching by means of an Pi-pad network because it is shaped like the Greek letter Pi. There are two types of Pi-pad impedance matching circuits. One with equal parallel impedances, and one with unequal parallel impedances.

But as well as impedance matching, this Pi-pad impedance calculator can also be used to provide isolation between circuit stages such as amplifiers or filters which can have problems when directly connected to one another.
